ISL3152EIBZ-T 1/1 Transceiver Half RS422 RS485 8-SOIC 4.5V ~ 5.5V 20 MV

ISL3152EIBZ-T 1/1 Transceiver Half RS422 RS485 8-SOIC

The ISL315xE (ISL3150E, ISL3152E, ISL3153E, ISL3155E, ISL3156E, and ISL3158E) family of 5V powered RS-485/RS-422 transceivers features high output drive and high ESD protection. The devices withstand ±16.5kV IEC61000-4-2 ESD strikes without latch-up. The large output voltage of 3.1V typical into a 54Ω load provides high noise immunity, and enables the drive of up to 8000ft long bus segments, or eight 120Ω terminations in a star topology.

These devices possess less than 125µA bus input currents, thus constituting a true 1/8 unit load. The high output drive combined with the low bus input currents allows for connecting up to 512 transceivers on the same bus.

The receiver inputs feature a full fail-safe design that turns the receiver outputs high when the bus inputs are open or shorted.

The ISL315xE family includes half and full-duplex transceivers with active-high driver-enable pins and active-low receiver enable pins. These transceivers support data rates of 115kbps, 1Mbps, and 20Mbps. Their performance is characterized from -40°C to +85°C.

Features

• High VOD: 3.1V (Typ) into RD = 54Ω

• Low bus currents: 125µA constitutes a true 1/8 unit load

• Allows for up to 512 transceivers on the bus

• ±16.5kV ESD protection on bus I/O pins

• High transient overvoltage tolerance of ±100V

• Full fail-safe outputs for open or shorted inputs

• Hot plug capability - driver and receiver outputs remain high-impedance during power-up and power-down

• Supported data rates: 115kbps, 1Mbps, 20Mbps

• Low supply current (driver disabled): 550µA

• Ultra-low shutdown current: 70nA

Applications

• Automated utility e-meter reading systems

• High node count systems

• PROFIBUS and Fieldbus systems in factory automation

• Security camera networks

• Lighting, elevator, and HVAC control systems in building automation

• Industrial process control networks

• Networks with star topology

• Long-haul networks in coal mines and oil rigs

Specification of ISL3152EIBZ-T

ORIGINAL

Our company ensures that each batch of products comes from the original factory, and can provide original labels and professional testing agency reports.

PRICE

We provide a variety of quotation channels, and sign the order contract after negotiation.

TRANSACTION

After communication and agreement, we will guide you to arrange payment.

DELIVERY CYCLE

Delivery on the same day, generally 5-12 working days, may be slightly delayed during the epidemic, we will follow up the whole process.

TRANSPORT

We will choose the appropriate transportation mode according to your country.

PACKAGING

After communication with you, we will choose the appropriate packaging method according to the weight of the goods to ensure the safe delivery of the goods.

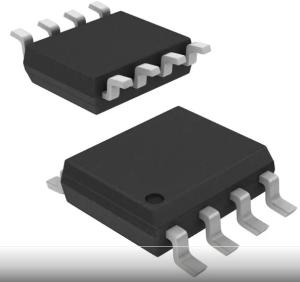

ISL3152EIBZ-T 1/1 Transceiver Half RS422 RS485 8-SOIC 4.5V ~ 5.5V 20 MV Images
